Oil & Gas

Shipping REels to transport flexible oil & Gas Pipe

Project Manager / Designer

  • Designer
  • Structural Analysis – Finite Element Analysis (FEA) with COSMOS
  • Fabrication Project Manager

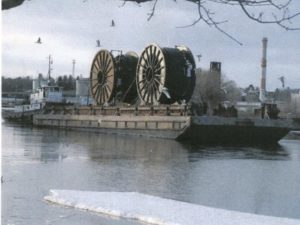

4" AND 6" FLEXIBLE PIPE REEL WITH SHIPPING CRADLE​
  • For the transportation of 4″ and 6″ flexible pipe
  • 30 foot diameter flanges
  • 12 feet between flanges
  • 250,000lbs capacity
Reel Under Roller
  • Rotates shipping reels for loading/unloading of flexible pipe, umbilicals, tube, cable
  • Passive and hydraulically powered wheels
  • designed and sourced full hydraulics package to power under roller

Project Manager / Designer

Structural Analysis – Finite Element Analysis (FEA) with COSMOS

Fabrication Project Manager

4" AND 6" FLEXIBLE PIPE REEL WITH SHIPPING CRADLE​

For the transportation of 4″ and 6″ flexible pipe

30 foot diameter flanges

12 feet between flanges

250,000lbs capacity

Reel Under Roller

Rotates shipping reels for loading/unloading of flexible pipe, umbilicals, tube, cable

Passive and hydraulically powered wheels

designed and sourced full hydraulics package to power under roller

Layered Tape Winder for flexible pipe

Project Manager / Designer

  • Solved a longstanding problem for how to wind material around a cylindrical body in a uniform and calculated manner
  • Prototype designed and built in one week
Tape Winder CAD Illustration
US Patent Application

Project Manager / Designer

SOLVED A LONGSTANDING PROBLEM FOR HOW TO WIND MATERIAL AROUND A CYLINDRICAL BODY IN A UNIFORM AND CALCULATED MANNER

PROTOTYPE DESIGNED AND BUILT IN ONE WEEK

Tape Winder CAD Illustration
US Patent Application

Modular Carousel for Flexible Pipe

Project Manager / Designer

  • carousel designed for storing cable, flexible pipe and umbilicals.
  • Design and structural analysis (FEA with COSMOS),
  • Project manager for fabrication
75 Foot Carousel Design
  • Carousel rotates at 1rmp while carrying up to 3,500,000 lbs.
  • Innovative design allows for conforming to underlying surface, like a curved ship deck
  • Unique drive system, axle and articulated body ensuring 100% support by all wheels
US Patent

Project Manager / Designer

carousel designed for storing cable, flexible pipe and umbilicals.

Design and structural analysis (FEA with COSMOS),

Project manager for fabrication

75 Foot Carousel Design

Carousel rotates at 1rmp while carrying up to 3,500,000 lbs.

Innovative design allows for conforming to underlying surface, like a curved ship deck

Unique drive system, axle and articulated body ensuring 100% support by all wheels

US Patent
